SDD PTM-0205
Press Trim Module

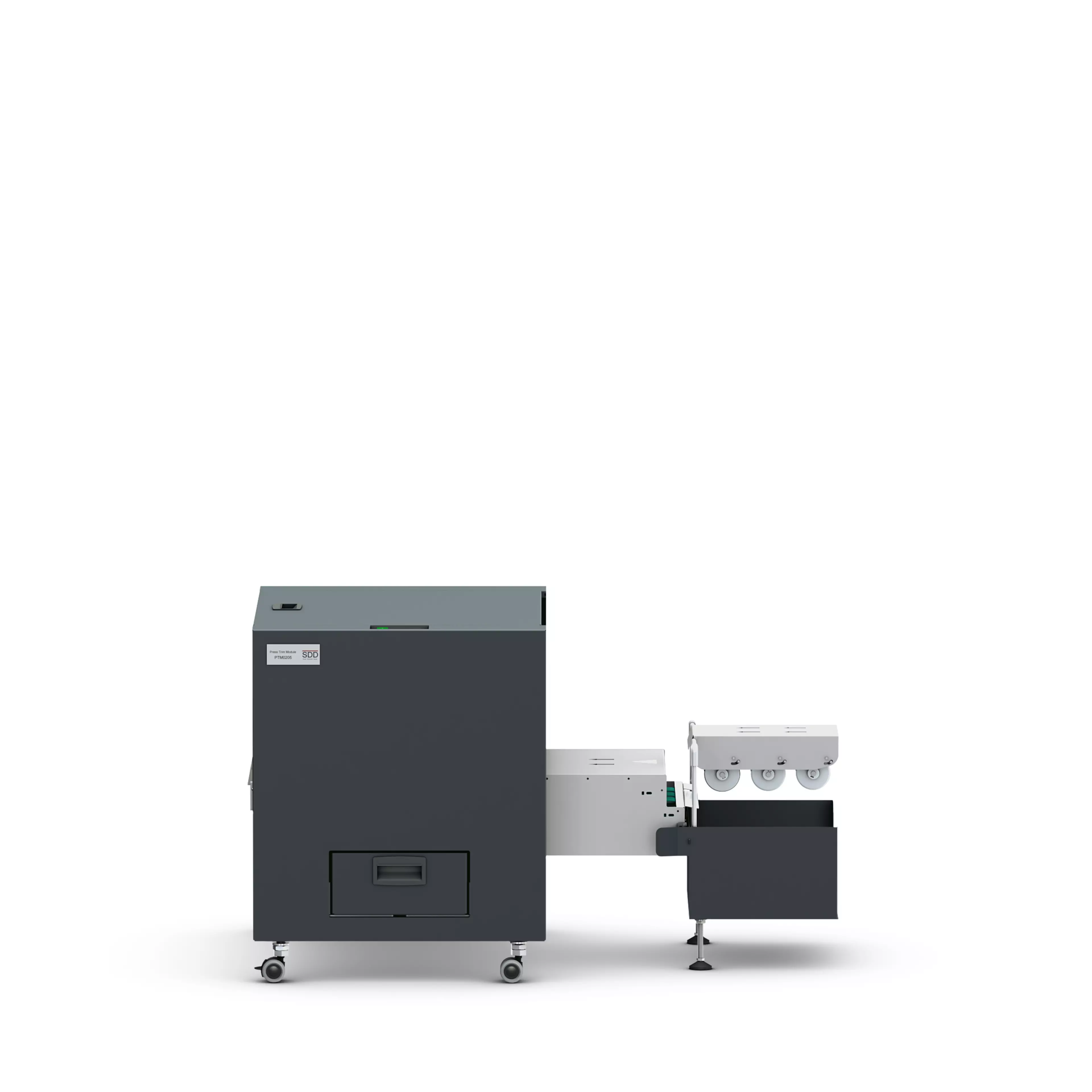

The SDD PTM-0205 Press Trim Module is a compact finishing solution designed for professional booklet production in office and production print environments. It ensures high-quality results, ease of use and seamless integration into existing workflows.
The PTM-0205 enables automated booklet finishing including front trimming and pressing for a flat and professional output. Thanks to its dynamic system, it automatically adapts to different booklet sizes and thicknesses without manual intervention. The module can be connected quickly and easily to various printing systems, offering maximum flexibility in production environments.
What are the main USPs of this product?
Fully automated booklet trimming and pressing without operator intervention

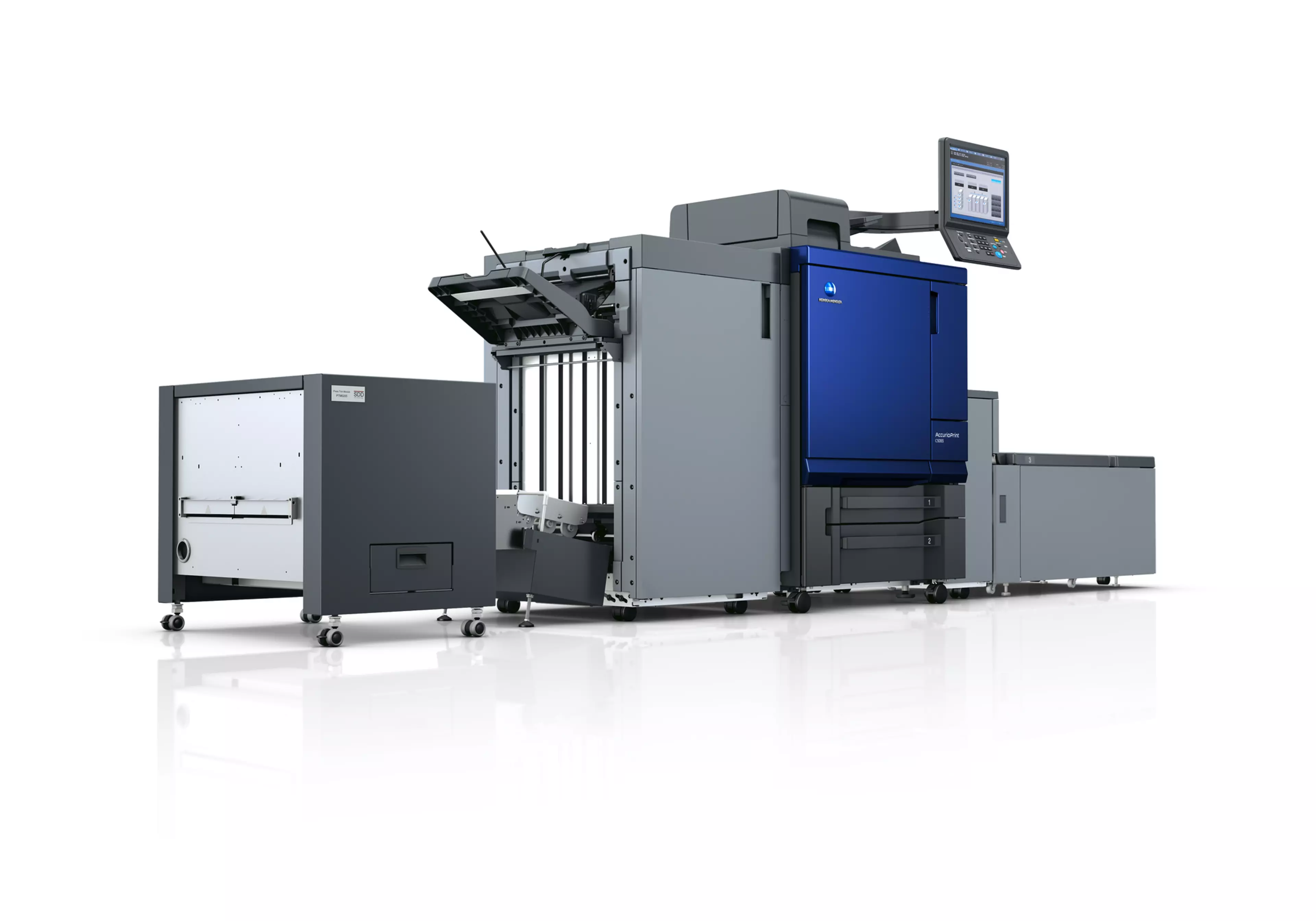

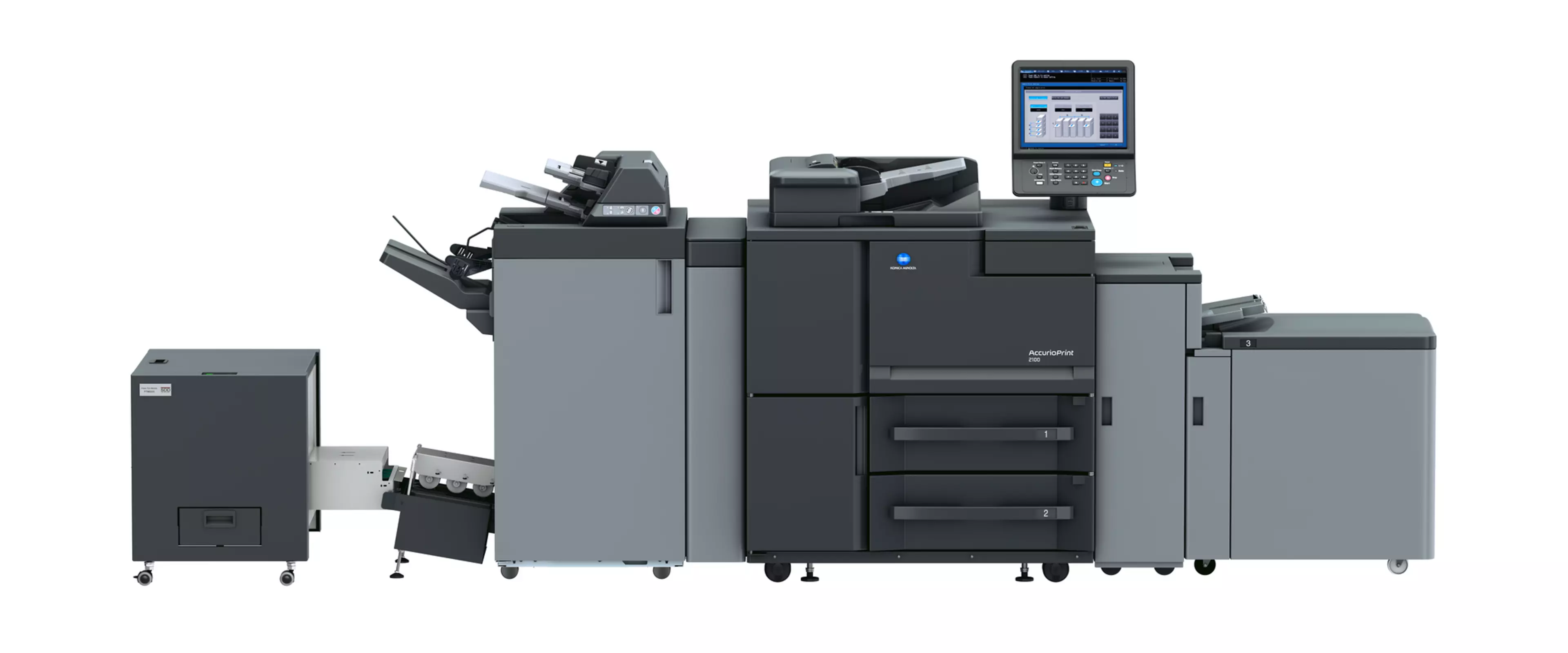

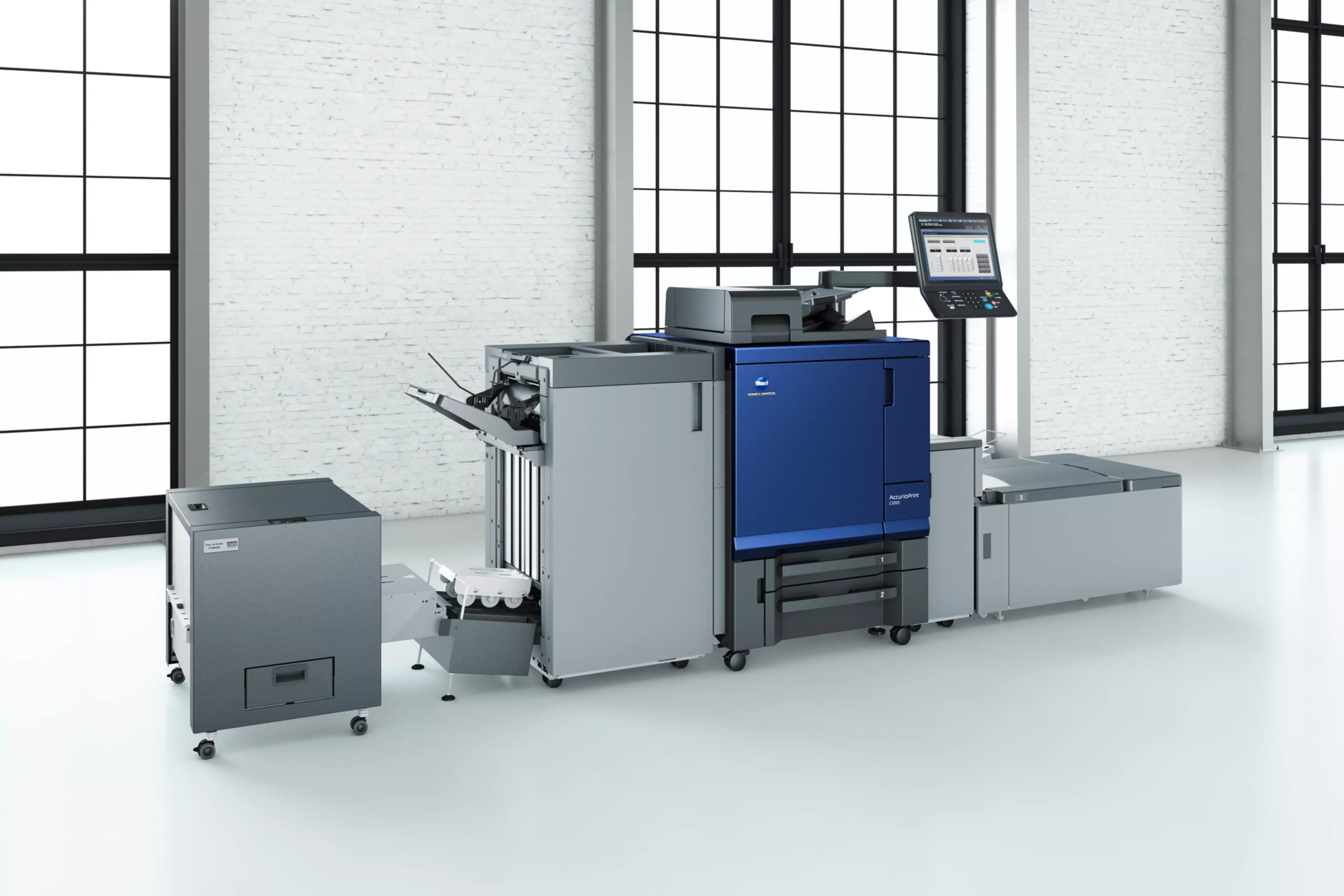

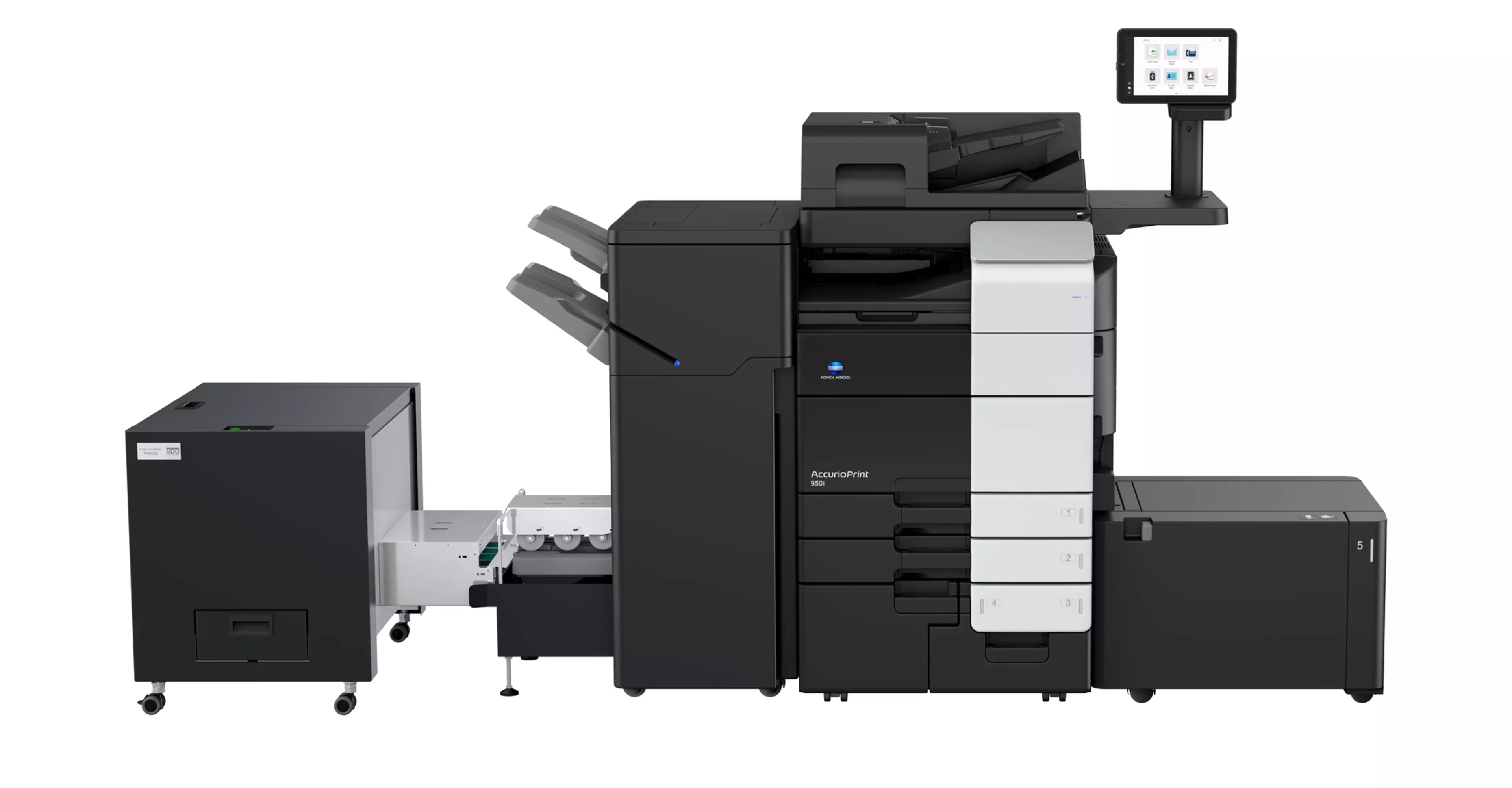

Highly flexible: usable inline and nearline
Automatic job switching (e.g. A3 to A4)
Compact and mobile design (easy relocation between systems)
Seamless integration via magnetic connection
High reliability with durable knives and patented technology
Main functionalities
- Front trimming (2–25 mm adjustable)
- Booklet pressing for flat output
- Automatic format and job switching
- Dynamic thickness adjustment
- Inline and nearline operation
- Manual feeding option (optional module)
Technical highlights
- Fully automated finishing workflow
- Dynamic job adaptation without operator input
- Easy installation via magnetic connection
- Support for multiple booklet formats
- Reliable performance with low maintenance
Specifications
- Productivity: up to 600 booklets/hour
- Paper weight: 60–300 g/m²
- Booklet thickness: up to 25 sheets
- Trim range: 2–25 mm
- Power consumption: < 0.4 kW
- Noise level: ≤ 70 dB
Finishing
- Front trimming
- Booklet pressing
- Stacking (via optional conveyor CBS-6060 or CBS-6061)
Technologies
- Patented trimming technology
- Durable knife system
Related (optional) Products
- HIM-5030 Hand Infeed Module
- CBS-6061 Conveyor Belt Stacker (60 cm)
- CBS-6151 Conveyor Belt Stacker (150 cm)
Most valuable features & benefits
The PTM-0205 offers a highly automated finishing process that reduces manual work and increases productivity. Its ability to adjust automatically to different booklet formats and thicknesses makes it ideal for environments with frequent job changes. The compact design and easy installation ensure seamless integration into existing workflows.
Automated booklet trimming and pressing for consistent, professional output
Dynamic system with automatic adaptation to format and thickness
Fast and simple installation with magnetic connection
Flexible use inline or nearline across different printing systems
High durability and reliability thanks to patented technology
Compact footprint with scalable output options
